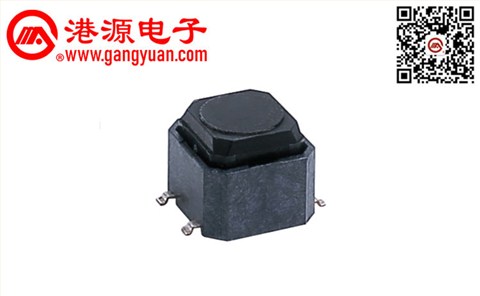

基本參數/PARAMETER
| 型號 | KTD0623-0651K0101 |
| 電氣壽命 | 100000 |
| 絕緣電阻 | ≥100MΩ |
| 接觸電阻 | ≤100mΩ |
| 操作力 | 5.0±1N |
| 開關行程 | 1mm +0.2/-0.3mm |
| 最大額定值 | 50mA DC16V |
|
最小額定值 |
10uA DC1V |
|
耐電壓 |
AC 250V |
|
操作溫度 |
-40~90℃ |
| 端子形狀 |
折彎腳 |
| 端子數 | 4 |

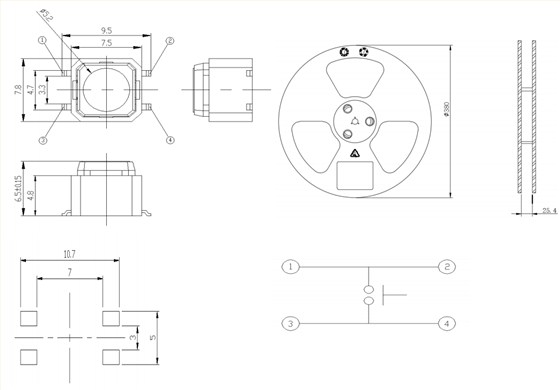

產品規格書/SPECIFICATIONS
安裝孔尺寸圖/MOUNTING HOLE DIMENSIONS

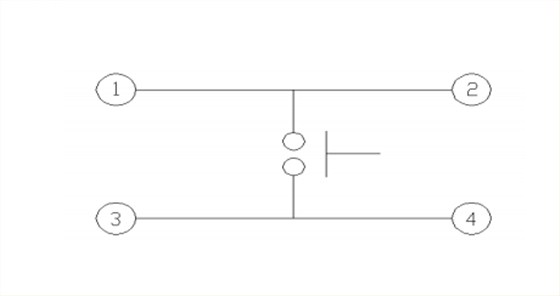

電路圖/SCHEMATIC

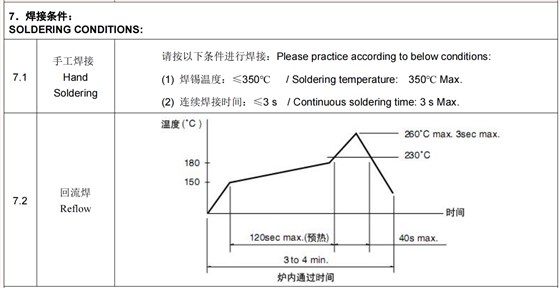

焊接條件/WELDING CONDITIONS
注意事項/PRECAUTIONS
1.1開關浸焊后，注意不要用溶劑清洗。
After switches were soldered,please be careful not to clean switches with solvent.
1.2在使用烙鐵的情況下，焊錫溫度應在350℃以下、3秒以?xún)取?/span>
In the case of using soldering iron, soldering conditions shall be 350℃max and 3 sec.max.
1.3浸焊后，注意不要在頂部施加負荷。
Right after immersion welding;please be careful not to load to on the knobs of switches.
2設計中應注意的事項( Design instructions):
2.1印刷基板的安裝孔尺寸參見產品圖。
Follow recommended P.W.B. piercing plan in outside drawing page.
3注意點(Note):
3.1注意不要施加超負荷的壓力或晃動開關
Please be cautions not to give excessive static load or shock to switches.
3.2開關浸焊后，印刷基板注意不要疊放。
Please be careful not to pile up P.W.B.after switches were soldered
3.3保管時尤其應注意避開高濕高溫和有腐蝕性氣體的環境。如需要長時間保存，請不要打開包裝箱。
Preservation under high temperature and high high humidity or corrosive gas should be avoided
Especially . When you need to preserve for a long
